PEARLS

Sturdy Hooks for Elastics Attachment

Although intermaxillary elastics are often used to settle the occlusion during the finishing stage of orthodontic treatment, many Bracket systems do not include hooks for elastics attachment. Kobayashi or custom-made ligature hooks1 tend to bend labially when used with heavy elastics, especially during placement and removal, and elastics can even pop loose from the hooks on mouth opening. We have devised a simple, stiff hook--named the "PGI hook" after our Post-Graduate Institute--for use with intermaxillary elastics in patients bonded with twin brackets.

Fabrication

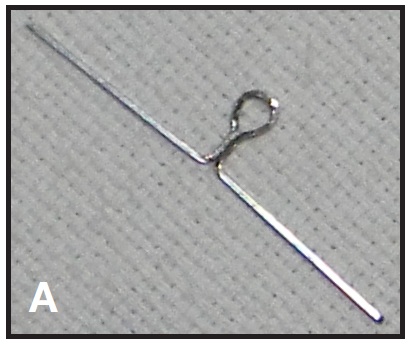

1. Form a 2mm-diameter bull loop in a segment of .016" x .022" (for .018" slots) or .019" x .025" (for .022" slots) rectangular stainless wire. Place a 90° bend in each leg so that the legs lie flat in the same horizontal plane (A).

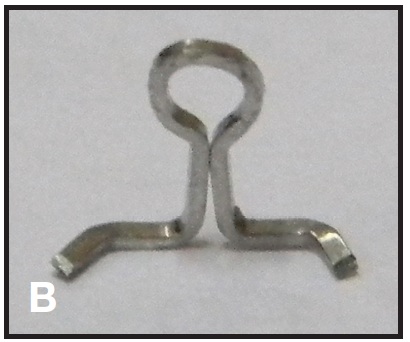

2. Place medial bends in the legs, 2-3mm from the neck of the loop, and cut away the excess wire (B).

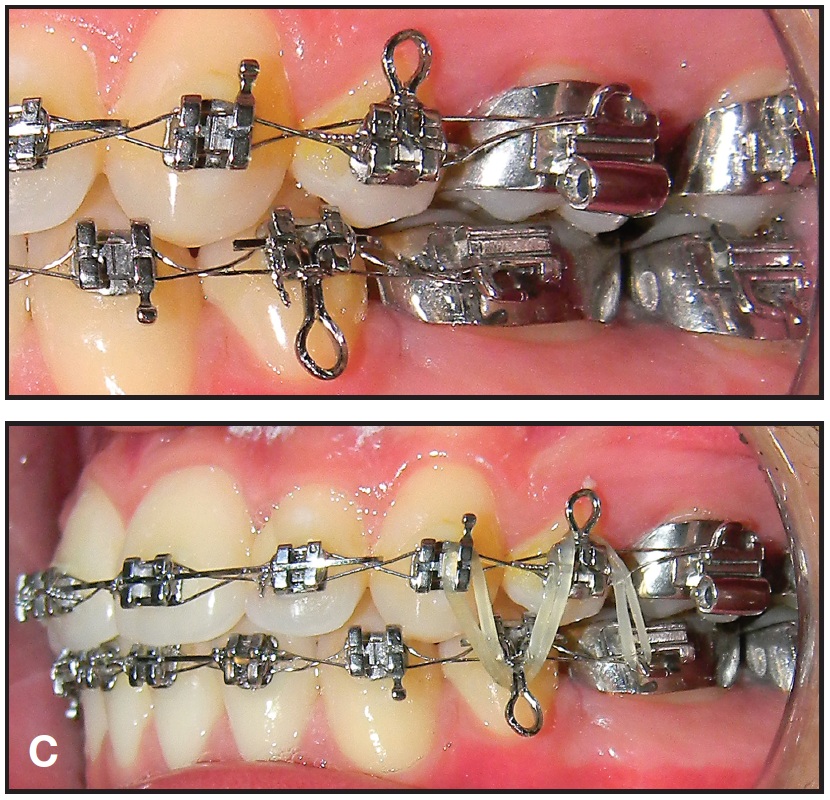

3. Engage the PGI hook in the bracket slot and ligate it tightly (C).

Since the hook fills the main archwire slot, it can be used only when a main archwire is not in place, and it may be difficult to engage in small brackets with short distances between the mesial and distal tie wings. Still, we have found the PGI hook to be useful in our practice; it is easily fabricated and will not deform under forces from elastics, mastication, or oral hygiene. Patients find it much easier and more comfortable to wear their elastics with the PGI hooks than with conventional ligature hooks.

REFERENCES

  • 1.   Yadav, S. and Upadhyay, M.: Custom-made ligature hooks for engaging elastics, J. Clin. Orthod. 41:39-40, 2007.
  • RAJ KUMAR
    DR. VERMA
  • ASHOK KUMAR
    DR. JENA
  • SATINDER PAL
    DR. SINGH
  • ASHOK KUMAR
    DR. UTREJA

Dr. Verma is a Junior Resident, Drs. Jena and Singh are an Assistant Professor, and Dr. Utreja is Professor and Head, Unit of Orthodontics, Oral Health Sciences Centre, Post-Graduate Institute of Medical Education and Research (PGIMER), Chandigarh, UT, India.

Fig. A
Fig. B
Fig. C

REFERENCES 2

DR. RAJ KUMAR VERMA BDS

DR. ASHOK KUMAR JENA MDS

DR. SATINDER PAL SINGH MDS

DR. ASHOK KUMAR UTREJA MDS
