CASE REPORT

Two-Phase Treatment of Anterior Open Bite

Anterior open bite is found in 17% of patients seeking orthodontic treatment1,2; its overall prevalence ranges from 25% to 38%, depending on demographic factors.3 Orthodontists face several challenges in treating this malocclusion, including whether to recommend extractions4 or surgery5 and how to maintain stability after correction.

Because the etiology of anterior open bite may be multifactorial, it often requires comprehensive, multidisciplinary treatment. Physical characteristics such as facial pattern may be involved in its development6; other contributing factors include habits such as non-nutritive sucking,7,8 abnormal swallowing, atypical speech, mouthbreathing, variable resting tongue postures,9 and occlusive and eruptive forces in disequilibrium.10

Effective and stable correction depends on an accurate diagnosis of the anterior open bite.11 Moreover, given the diversity of causative factors, accurate treatment timing and planning are required. In cases involving non-nutritive sucking habits, orthodontic appliances that promote habit suspension and tongue repositioning have been shown to be more effective than no treatment.12,13 Two-phase treatment is commonly prescribed so that the habit can be stopped in the early mixed dentition. In the second stage, during the permanent dentition, orthodontic camouflage (usually associated with extractions) helps mask the malocclusion and restore function and facial harmony.14 This article describes such a treatment.

Diagnosis and Treatment Plan

A 5-year-old female was referred by her dentist with the request to “correct the open bite.” The patient was in the mixed dentition and had a pacifier-sucking habit.

Clinical examination found a long lower face, convex facial profile, lack of lip closure, and normal nasolabial angle (Fig. 1).

Fig. 1 5-year-old female patient with pacifier-sucking habit, anterior open bite, and posterior crossbite before treatment.

Good oral hygiene and healthy gingival tissues were observed. The patient tended toward a Class II, division 1 malocclusion, with a distal-step molar relationship on the right and left sides; crossbite of the upper right deciduous canine, first molar, and second molar due to maxillary atresia; a 4.5mm anterior open bite; and a 7mm overjet. A metal crown was present on the upper left second deciduous molar. The upper midline was shifted 1mm to the left, but the lower midline coincided with the facial midline.

The patient exhibited mixed breathing, atypical swallowing and speech, and enlarged adenoids and tonsils; an otolaryngologist and a speech therapist had already been consulted. The panoramic radiograph showed congenital absence of the lower second premolars and third molars, with no evidence of calcification. Cephalometric analysis indicated a Class II skeletal pattern with maxillary prognathism and clockwise rotation of the mandible in relation to the skeletal base, a dolichofacial pattern, and a vertical growth trend (Table 1).

The objectives for the first phase of treatment were to eliminate the pacifier habit and to correct the posterior crossbite and anterior open bite. The second phase of treatment would include orthodontic correction of anteroposterior dental deviations, as well as leveling and alignment of both arches.

Treatment Progress

A modified Haas palatal expander with a palatal crib was installed to correct the posterior crossbite and anterior open bite (Fig. 2A). The screw was expanded with one-quarter turn daily for 28 days (Fig. 2B). Following a passive retention period and removal of the Haas expander, a fixed palatal crib was placed to prevent continued tongue thrusting and pacifier sucking. The interceptive phase lasted 20 months.

Phase II was initiated 36 months after the completion of Phase I (Fig. 3).

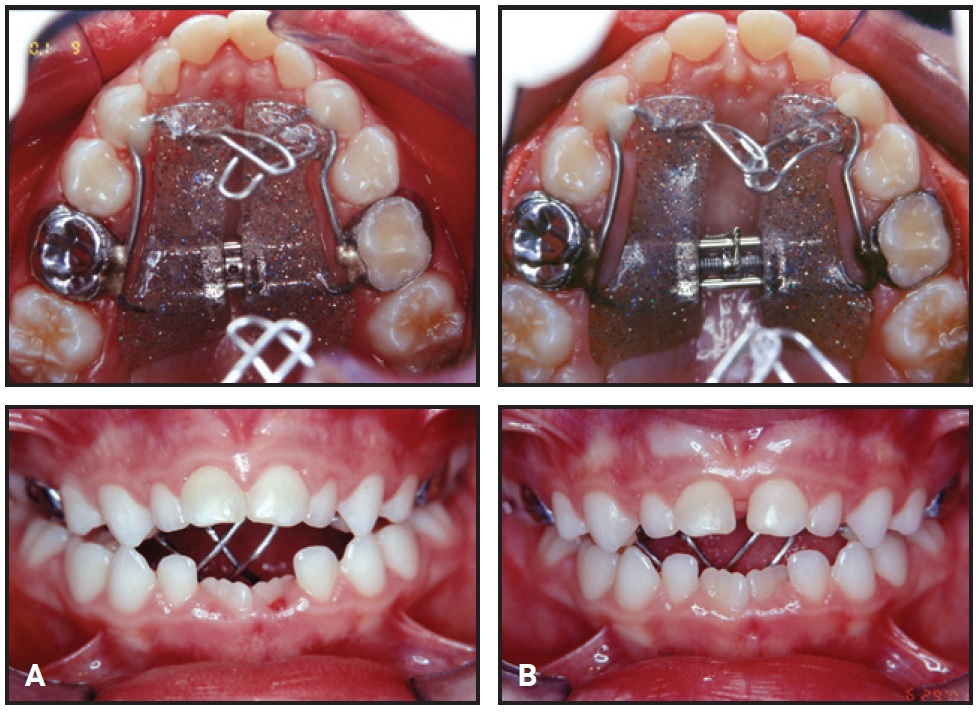

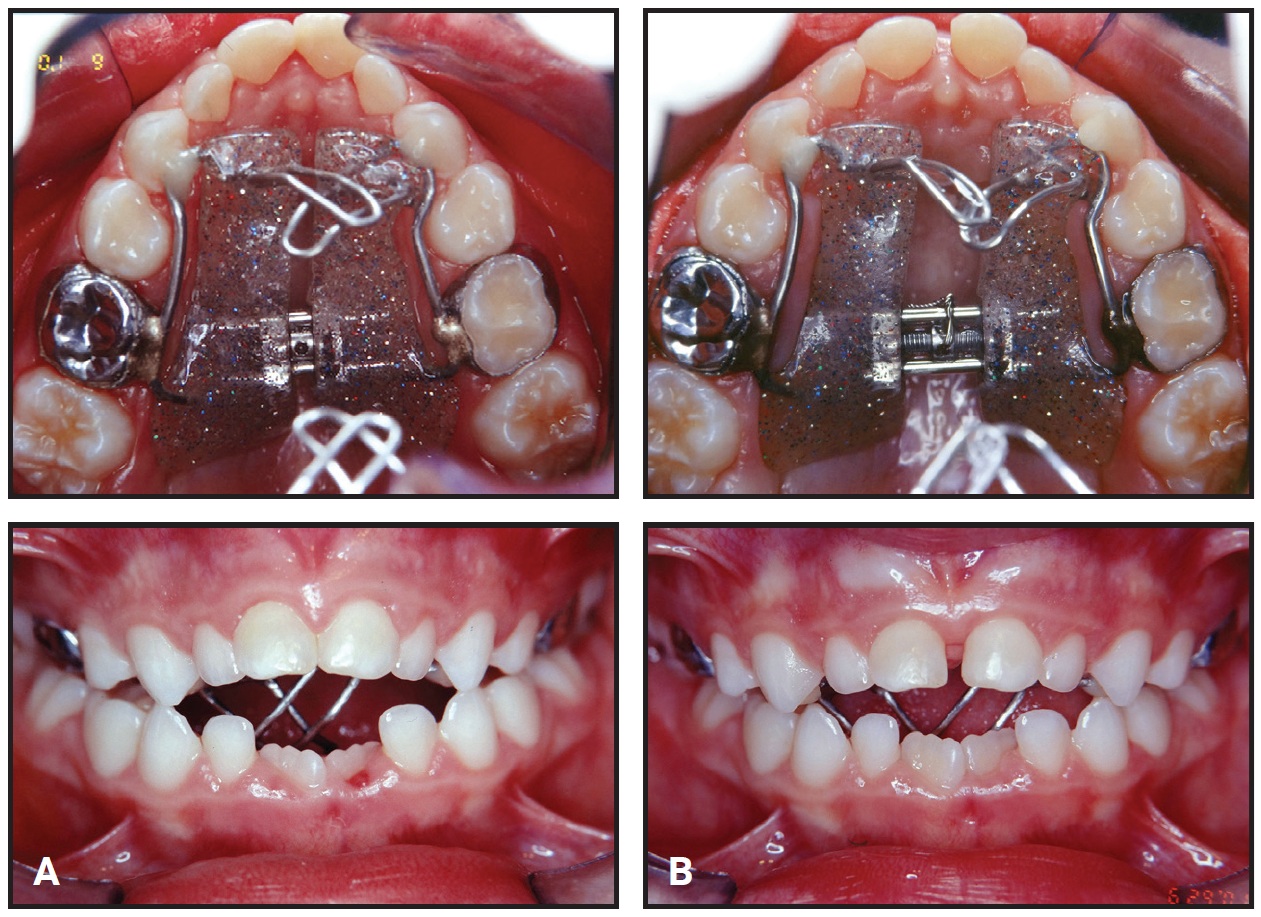

Fig. 2 Modified Haas palatal expander with palatal crib at time of insertion (A) and after 28 days of expansion (B).

Fig. 3 Patient at start of Phase II, 36 months after Phase I completion.

An orthopedic device was used together with a combination-pull headgear to control vertical mandibular growth. This extraoral traction reduced the anteroposterior maxillomandibular discrepancy by promoting counterclockwise rotation of the mandible and restricting horizontal growth of the maxilla (Table 1).

After extraction of the upper first premolars and lower second deciduous molars on both sides, corrective orthodontic treatment was initiated with standard .022" × .028" edgewise appliances. Leveling and alignment occurred over 16 months on a sequence of .014" to .020" stainless steel archwires. To close the extraction spaces, looped .018" × .025" and .019" × .025" stainless steel archwires were used to retract the upper canines and incisors and the lower premolars, canines, and incisors. The patient wore the headgear nightly during this phase, which took 23 months. To improve intercuspation in the final stages, Class II intermaxillary elastics (¼") and vertical elastics (3⁄16") were worn bilaterally, along with intermaxillary elastics (¼") in the anterior region.

The total time of the corrective phase was 39 months (Fig. 4).

Fig. 4 Patient after 39 months of Phase II treatment.

A lower lingual 3-3 retainer wire was bonded, and a removable wraparound upper retainer was prescribed for two years of wear.

Treatment Results

All treatment goals were achieved during these two stages. Extraction of the first premolars and agenesis of the lower second premolars permitted retraction of the anterior teeth, which improved facial harmony and lip posture. The midline deviation and Class II malocclusion were also corrected, and adequate overjet and overbite were obtained. The final panoramic radiograph showed acceptable root parallelism and integrity, with the upper and lower incisors better positioned in their bony bases (Table 1). The overall trend of facial growth remained vertical.

Extraction of the third molars was requested. Four years after treatment, the occlusion and facial appearance remained stable, and the patient was fully satisfied with the results (Fig. 5).

Fig. 5 Patient four years after treatment.

Discussion

Spontaneous interruption of a non-nutritive sucking habit before age 5 aids in the natural correction of anterior open bite, depending on the patient’s facial pattern and respiratory, phonetic, and anatomical characteristics.6-8,10 Self-correction of anterior open bite occurs in as many as 80% of the patients who break this habit before the early mixed dentition.12 A more persistent non-nutritive sucking habit will require orthodontic intervention, as shown here. Our patient also displayed mixed breathing, atypical phonation and swallowing, and a vertical growth trend.

The benefits of a Haas expander in treating anterior open bite have been well established.15-17 In our case, a modified Haas palatal expander with a palatal crib proved effective. The acrylic component reduced the pleasure of sucking, helping to break the habit, while the palatal grid restricted tongue pressure on the anterior teeth, favoring correct tongue posture and making the pacifier habit difficult to practice.12,13 The palatal crib has been shown to be effective,12 although stability has varied among studies18,19 and the skeletal effects remain controversial.19 In our case, the anterior open-bite correction remained stable until the second phase of treatment. Similarly, Garrett and colleagues demonstrated stable anterior open-bite resolution using vertical control and lingual reeducation.20

In our second phase of treatment, the use of a combination-pull headgear helped anchor the posterior teeth and control vertical mandibular and horizontal maxillary growth. Jacob and colleagues showed that high-pull headgear could improve maxillomandibular skeletal and dental relationships through distal movement of the maxilla and upper molars, with little or no effect on the mandible.21 The use of headgear has not been found to affect vertical growth trends.6,22 In our patient, who had a favorable facial pattern, we were able to avoid surgery by employing a combination of headgear, dental extractions, leveling and alignment of the teeth, and anterior retraction.

Our results corroborate those of Denny and colleagues, who achieved stable correction of anterior open bite with extractions and orthodontic camouflage treatment.14 Janson and colleagues found that treatment of anterior open bite with extractions is more stable than nonextraction treatment, although the numbers of patients without clinically significant recurrence were similar in the two study groups.4 In a meta-analysis, about 75% of anterior open-bite treatments were found to be stable regardless of whether surgery was performed.5 Stability will always be a concern in such cases, however, because most patients with anterior open bite have occlusive, growth-related, and respiratory characteristics that increase the risk of relapse and are unlikely to change. Lopez-Gavito and colleagues observed relapse in 35% of their patients 10 years after treatment of anterior open bite.23 Over a similar period, Zuroff and colleagues found changes in dental positions, though their subjects all had positive overbites.2 In the case presented here, the occlusion remained stable four years after treatment.

REFERENCES

  • 1.   Tausche, E.; Luck, O.; and Harzer, W.: Prevalence of malocclusion in the early mixed dentition and orthodontic treatment need, Eur. J. Orthod. 26:237-244, 2004.
  • 2.   Zuroff, J.P.; Chen, S.H.; Shapiro, P.A.; Little, R.M.; Joondeph, D.R.; and Huang, G.J.: Orthodontic treatment of anterior open-bite malocclusion: Stability 10 years postretention, Am. J. Orthod. 137:302e1-302e8, 2010.
  • 3.   Espeland, L.; Dowling, P.A.; Mobarak, K.A.; and Stenvik, A.: Three-year stability of openbite correction by 1-piece maxillary osteotomy, Am. J. Orthod. 134:60-66, 2008.
  • 4.   Janson, G.; Valarelli, F.P.; Beltrão, R.T.S.; de Freitas, M.R.; and Henriques, J.F.C.: Stability of anterior open-bite extraction and nonextraction treatment in the permanent dentition, Am. J. Orthod. 129:768-774, 2006.
  • 5.   Greenlee, G.M.; Huang, G.J.; Chen, S.S.; Chen, J.; Koepsell, T.; and Hujoel, P.: Stability of treatment for anterior open-bite malocclusion: A meta-analysis, Am. J. Orthod. 139:154-169, 2011.
  • 6.   Phelan, A.; Franchi, L.; Baccetti, T.; Darendeliler, M.A.; and McNamara, J.A. Jr.: Longitudinal growth changes in subjects with open-bite tendency: A retrospective study, Am. J. Orthod. 145:28-35, 2014.
  • 7.   Vasconcelos, F.M.; Massoni, A.C.; Heimer, M.V.; Ferreira, A.M.; Katz, C.R.; and Rosenblatt, A.: Non-nutritive sucking habits, anterior open bite and associated factors in Brazilian children aged 30-59 months, Braz. Dent. J. 22:140-145, 2011.
  • 8.   Heimer, M.V.; Tornisiello Katz, C.R.; and Rosenblatt, A.: Non-nutritive sucking habits, dental malocclusions, and facial morph­ology in Brazilian children: A longitudinal study, Eur. J. Orthod. 30:580-585, 2008.
  • 9.   Artese, A.; Drummond, S.; Nascimento, J.M.; and Artese, F.: Criteria for the diagnosis and stable treatment of anterior open-bite, Dent. Press J. Orthod. 16:136-161, 2011.
  • 10.   De Sousa, R.V.; Ribeiro, G.L.; Firmino, R.T.; Martins, C.C.; Granville-Garcia, A.F.; and Paiva, S.M.: Prevalence and associated factors for the development of anterior open bite and posterior crossbite in the primary dentition, Braz. Dent. J. 25:336-342, 2014.
  • 11.   Matsumoto, M.A.N.; Romano, F.L.; Ferreira, J.T.L.; and Valério, R.A.: Open-bite: Diagnosis, treatment and stability, Braz. Dent. J. 23:768-778, 2012.
  • 12.   Borrie, F.R.P.; Bearn, D.R.; Innes, N.P.; and Ilheozor-Ejiofor, Z.: Interventions for the cessation of non-nutritive sucking habits in children, Cochrane Database Syst. Rev. 3:CD008694, 2015.
  • 13.   Leite, J.S.; Matiussi, L.B.; Salem, A.C.; Provenzano, M.G.; and Ramos, A.L.: Effects of palatal crib and bonded spurs in early treatment of anterior open bite: A prospective randomized clinical study, Angle Orthod. 86:734-739, 2016.
  • 14.   Denny, J.M.; Weiskircher, M.A.; and Dorminey, J.C.: Anterior open bite and overjet treated with camouflage therapy, Am. J. Orthod. 131:670-678, 2007.
  • 15.   Haas, A.J.: The treatment of maxillary deficiency by opening the midpalatal suture, Angle Orthod. 35:200-217, 1965.
  • 16.   Anhoury, P.: A modified rapid palatal expander for correction of anterior open bite and posterior crossbite, J. Clin. Orthod. 40:501, 2006.
  • 17.   Rosa, M.; Lucchi, P.; Mariani, L.; and Caprioglio, A.: Spontaneous correction of anterior crossbite by RPE anchored on deciduous teeth in the early mixed dentition, Eur. J. Paediat. Dent. 13:176-180, 2012.
  • 18.   Huang, G.J.; Justus, R.; Kennedy, D.B.; and Kokich, V.G.: Stability of anterior openbite treated with crib therapy, Angle Orthod. 60:17-24, 1990.
  • 19.   Feres, M.F.; Abreu, L.G.; Insabralde, N.M.; de Almeida, M.R.; and Flores-Mir, C.: Effectiveness of open bite correction when managing deleterious oral habits in growing children and adolescents: A systematic review and meta-analysis, Eur. J. Orthod. 39:31-42, 2017.
  • 20.   Garrett, J.; Araujo, E.; and Baker, C.: Open-bite treatment with vertical control and tongue reeducation, Am. J. Orthod. 149:269-276, 2016.
  • 21.   Jacob, H.B.; Buschang, P.H.; and dos Santos-Pinto, A.: Class II malocclusion treatment using high-pull headgear with a splint: A systematic review, Dent. Press J. Orthod. 18:21.e1-7, 2013.
  • 22.   Antonarakis, G.S. and Kiliaridis, S.: Treating Class II malocclusion in children: Vertical skeletal effects of high-pull or low-pull headgear during comprehensive orthodontic treatment and retention, Orthod. Craniofac. Res. 18:86-95, 2015.
  • 23.   Lopez-Gavito, G.; Wallen, T.R.; Little, R.M.; and Joondeph, D.R.: Anterior open-bite malocclusion: A longitudinal 10-year postretention evaluation of orthodontically treated patients, Am. J. Orthod. 87:175-186, 1985.
  • ARIANE XIMENES GRACIANO
    DR. PARRA
  • GABRIELA COSTA
    DR. MARIN
  • ODILON
    DR. GUARIZA
  • ORLANDO MOTOHIRO
    DR. TANAKA
  • ELISA SOUZA
    DR. CAMARGO

Drs. Parra and Marin are postgraduate students and Drs. Guariza, Tanaka, and Camargo are Professors, Graduate Program in Dentistry, Orthodontics, School of Life Sciences, Pontifícia Universidade Católica do Paraná, Rua Imaculada Conceição, 1155, Prado Velho 80215-901, Curitiba, Paraná, Brazil. E-mail Dr. Camargo at escamargo@uol.com.br.



Fig. 1 5-year-old female patient with pacifier-sucking habit, anterior open bite, and posterior crossbite before treatment.
Fig. 2 Modified Haas palatal expander with palatal crib at time of insertion (A) and after 28 days of expansion (B).
Fig. 3 Patient at start of Phase II, 36 months after Phase I completion.
Fig. 4 Patient after 39 months of Phase II treatment.
Fig. 5 Patient four years after treatment.

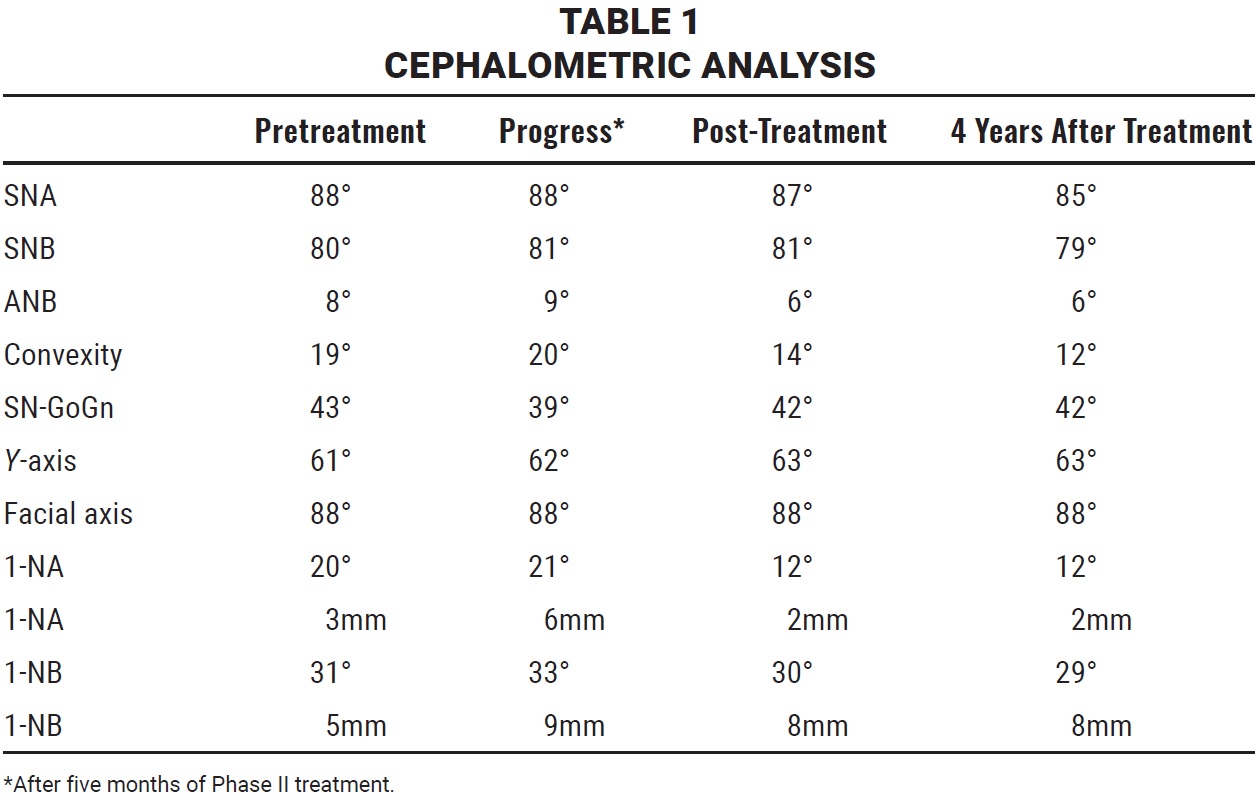

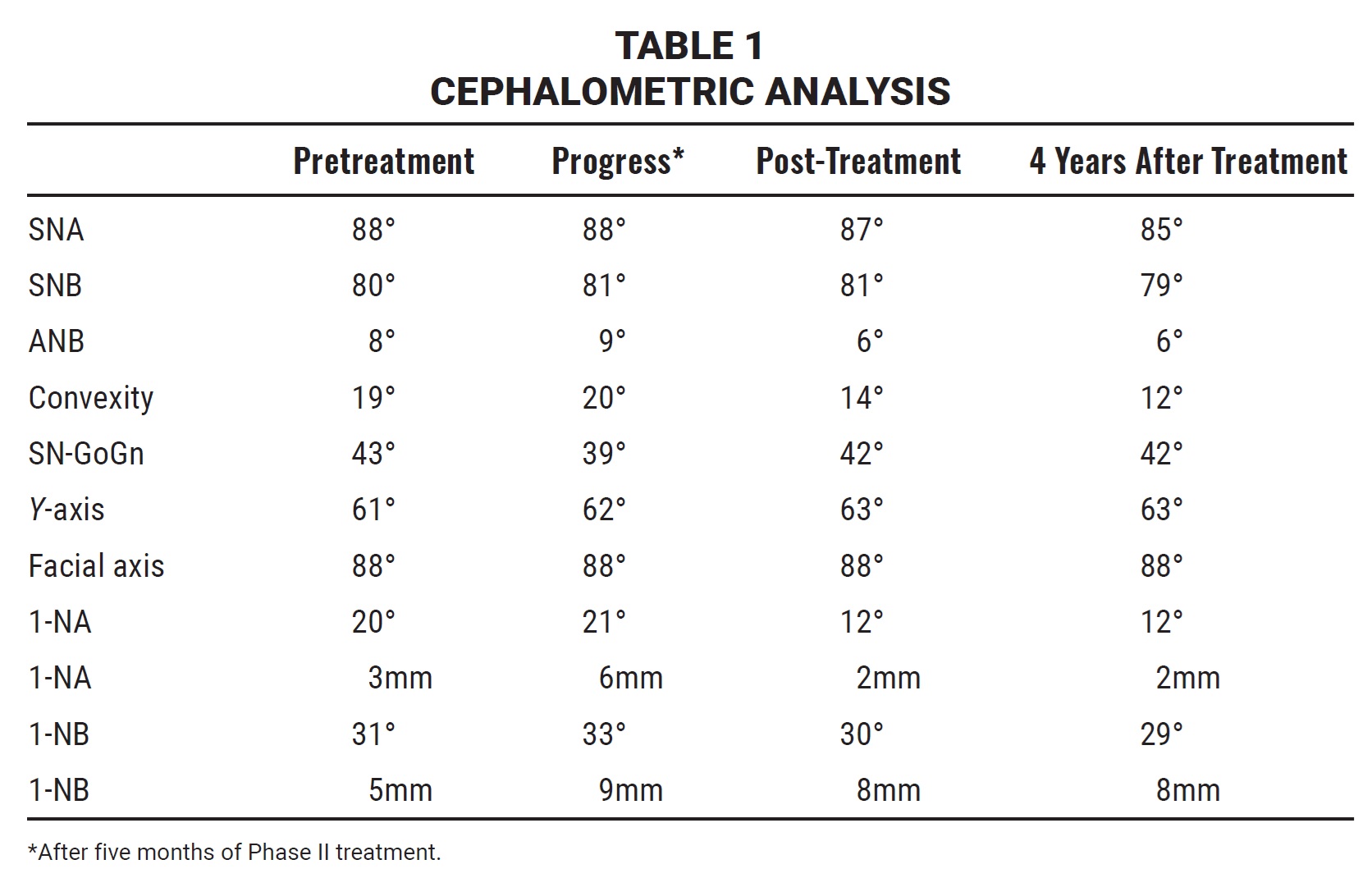

Table 1
