A Simple Three-Dimensional Guide for Safe Miniscrew Placement

MATIAS GABRIEL SIVAK DDS, PhD
YONG-MIN JO DMD, MSD, PhD
RAVINDRA NANDA BDS, MDS, PhD
TILL E. BECHTOLD DMD, MS, PhD

Miniscrews are small enough to be inserted into narrow spaces that could not be used with endosseous implants, such as the alveolar bone between the roots of adjacent teeth.^1-18 Miniscrew placement in these sites can be challenging, however, because of the risk of root damage.^19-26

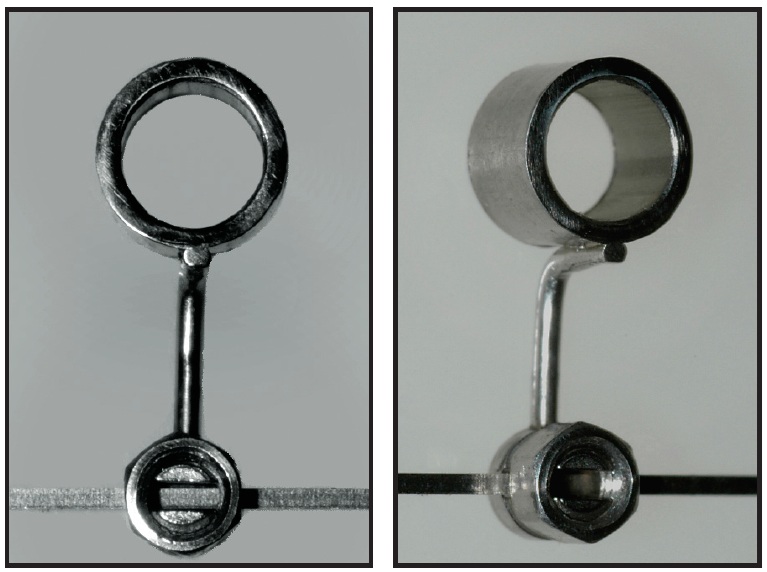

In a previous report, Suzuki and Buranastid-porn described the use of a fully adjustable guide that provides three-dimensional control during miniscrew placement.²² A smaller, improved version of this device, the 3D Surgical Guide^*, has now been developed (Fig. 1). The present article describes how the new device can be used to identify ideal miniscrew positions, minimizing the risk of root injury.

3D Surgical Guide

The 3D Guide is available with a vertical arm length of 5mm, 7mm, or 9mm. One end of the arm is attached to the main orthodontic archwire with a Gurin lock; the other is connected to a stainless steel tube 5mm long and 3mm in diameter. The tube is used to identify the optimal implant site on bite-wing radiographs and to guide the drilling of the pilot hole and placement of the miniscrew (Fig. 2).

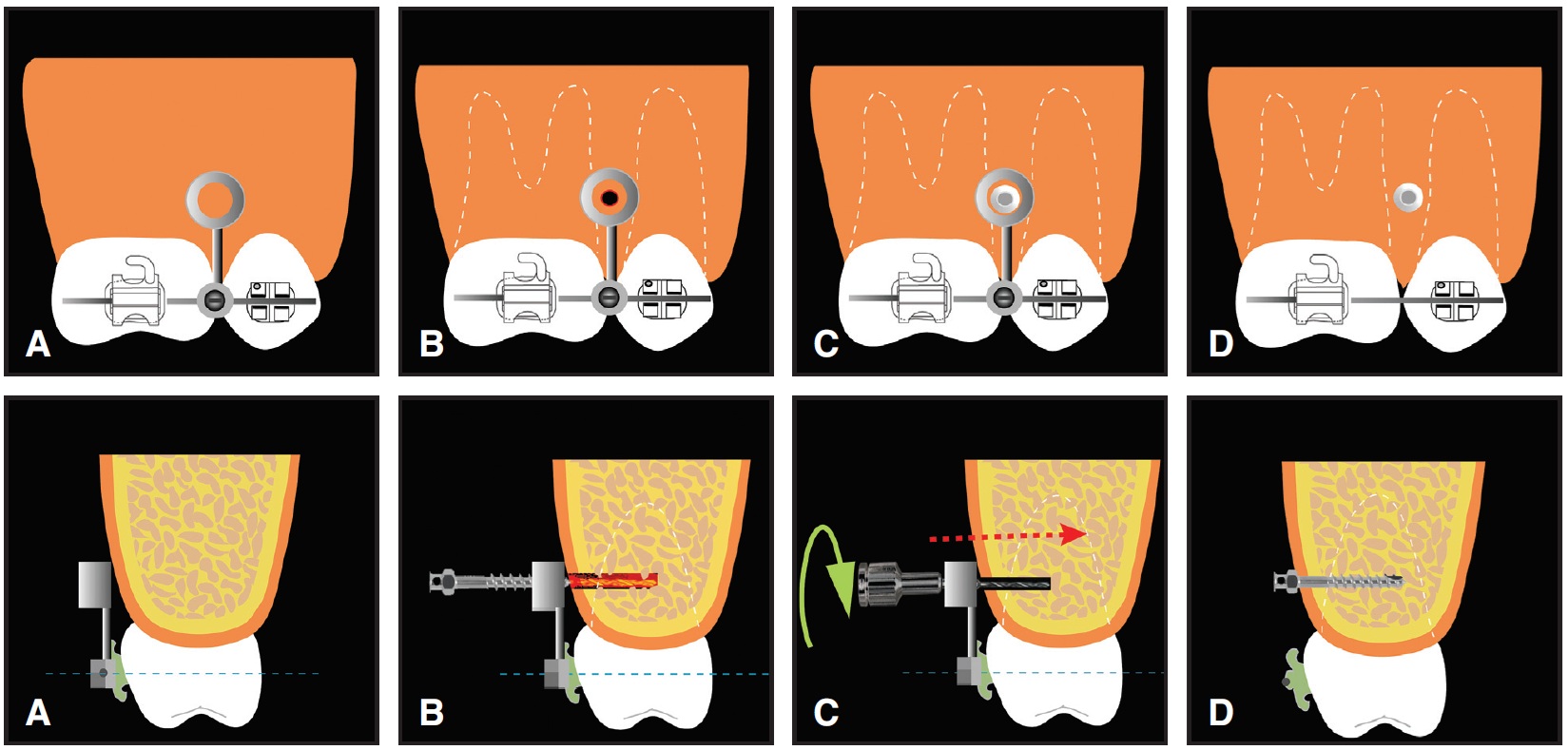

Fig. 2 Miniscrew insertion using 3D Guide. A. Identification of optimal implant site. B. Drilling of pilot hole through guide tube. C. Insertion of miniscrew. D. Removal of guide.

The device's simple design and range of sizes allow easy and rapid attachment at any position along a maxillary or mandibular stainless steel or nickel titanium archwire, with either labial or lingual appliances (Fig. 3). A manual screwdriver is used to adjust the guide outside or inside the mouth.

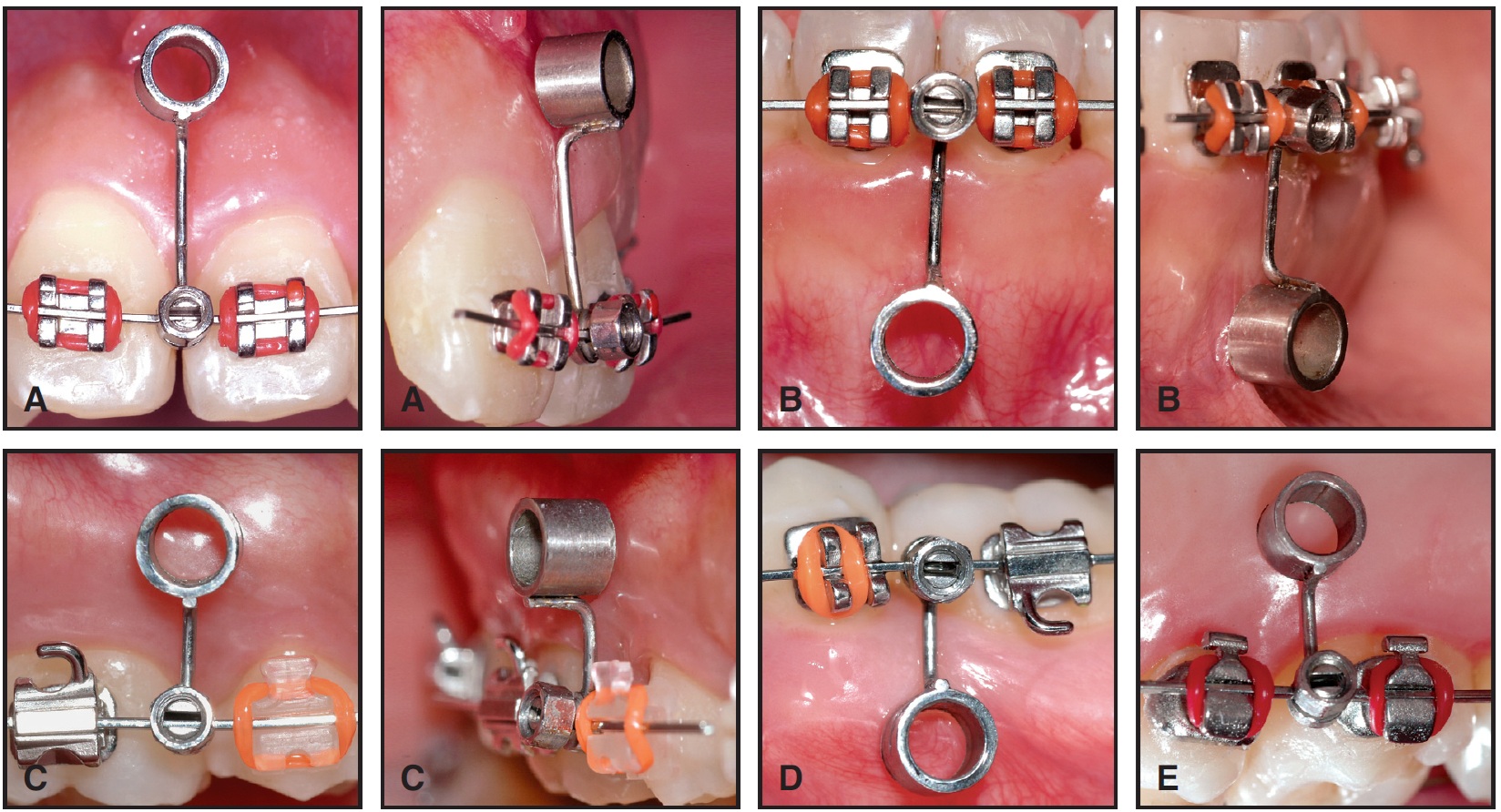

Fig. 3 3D Guide in various archwire positions. A. Maxillary anterior region. B. Mandibular anterior region. C. Maxillary posterior region. D. Mandibular posterior region. E. Lingual appliance.

Fine adjustments can be made in the horizontal position of the guide tube to achieve ideal miniscrew placement in relation to surrounding structures (Fig. 4). Adjustments can also be made in the angulation of the tube to alter the miniscrew insertion angle and thus increase the surface contact between miniscrew and bone^4,22,26 (Fig. 5).

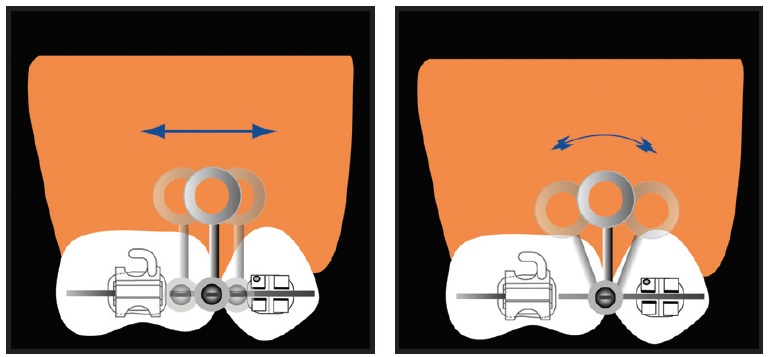

Fig. 4 Fine horizontal adjustments made by repositioning 3D Guide on archwire.

Miniscrew Insertion Procedure

Using conventional elastomeric impression material, take a bite registration on the plastic tab of a custom-made bite-wing film holder^** (Fig. 6A). This makes it possible to obtain consistent radiographs of the implant site throughout the placement procedure. The long-cone technique is used to minimize distortion and standardize the distance from the film to the x-ray tube (Fig. 6B).

Position the 3D Guide as accurately as possible at the preselected implant site (Fig. 7A). Take a radiograph to determine whether the radiopaque tube is correctly positioned to ensure the safety of the surrounding structures (Fig. 7B). If not, adjust the guide and take successive radiographs until the ideal position is achieved.

With the guide in the optimal implant position, drill a pilot hole, using normal saline irrigation to avoid excessive heat generation and remove bone debris (Fig. 7C). Insert the miniscrew into the pilot hole through the guide tube with the custom-made manual screwdriver (Fig. 7D). Once the screw is in place, gently remove the 3D Guide with the screwdriver. If necessary, screw the implant further to secure it in the bone, taking care not to jeopardize its primary stability (Fig. 7E).

Take a final bite-wing radiograph of the implant site to confirm proper positioning of the miniscrew (Fig. 7F). This x-ray also serves as a pretreatment record.

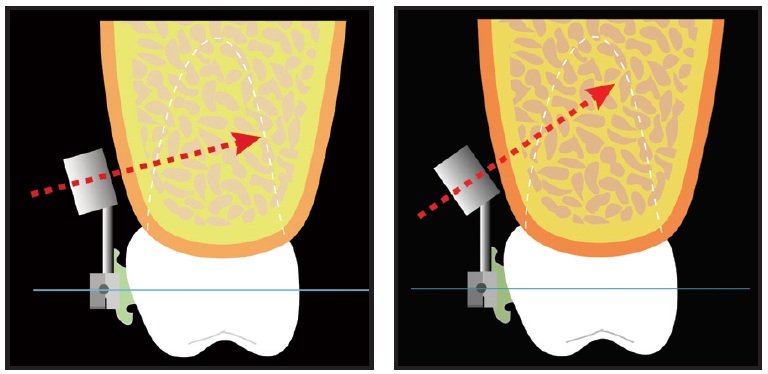

Fig. 5 Fine adjustments made in tube angulation to alter miniscrew insertion angle and increase surface contact between miniscrew and bone.

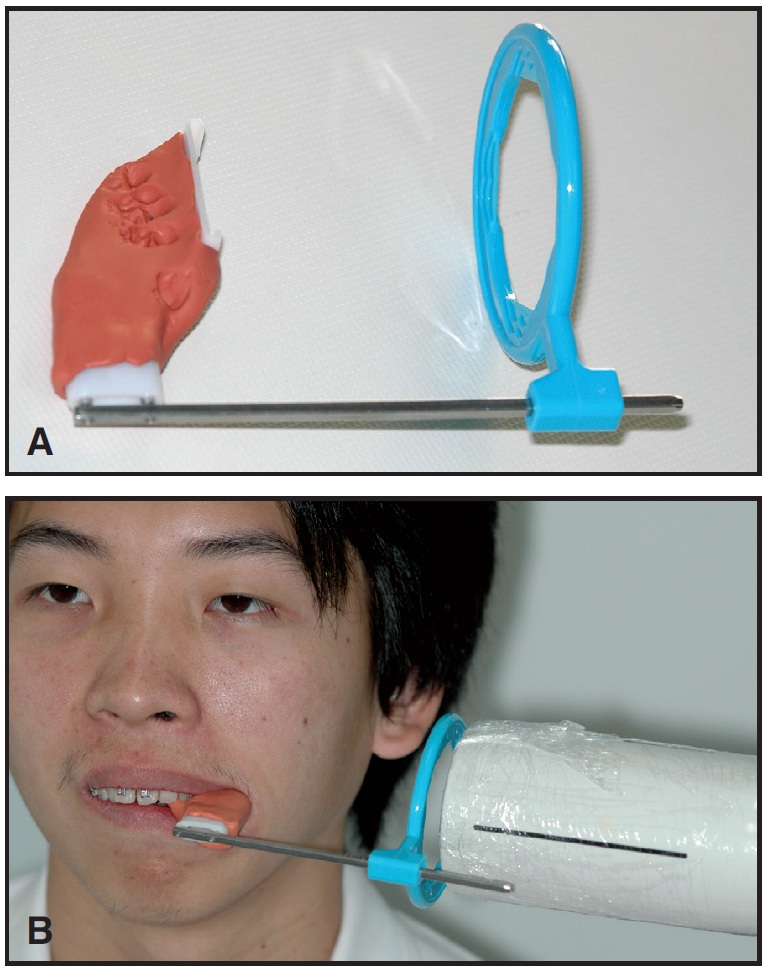

Fig. 6 A. Bite registration taken on custom-made film holder to ensure precise positioning of film at implant site. B. Vertical bite-wing radiograph taken using long-cone technique.

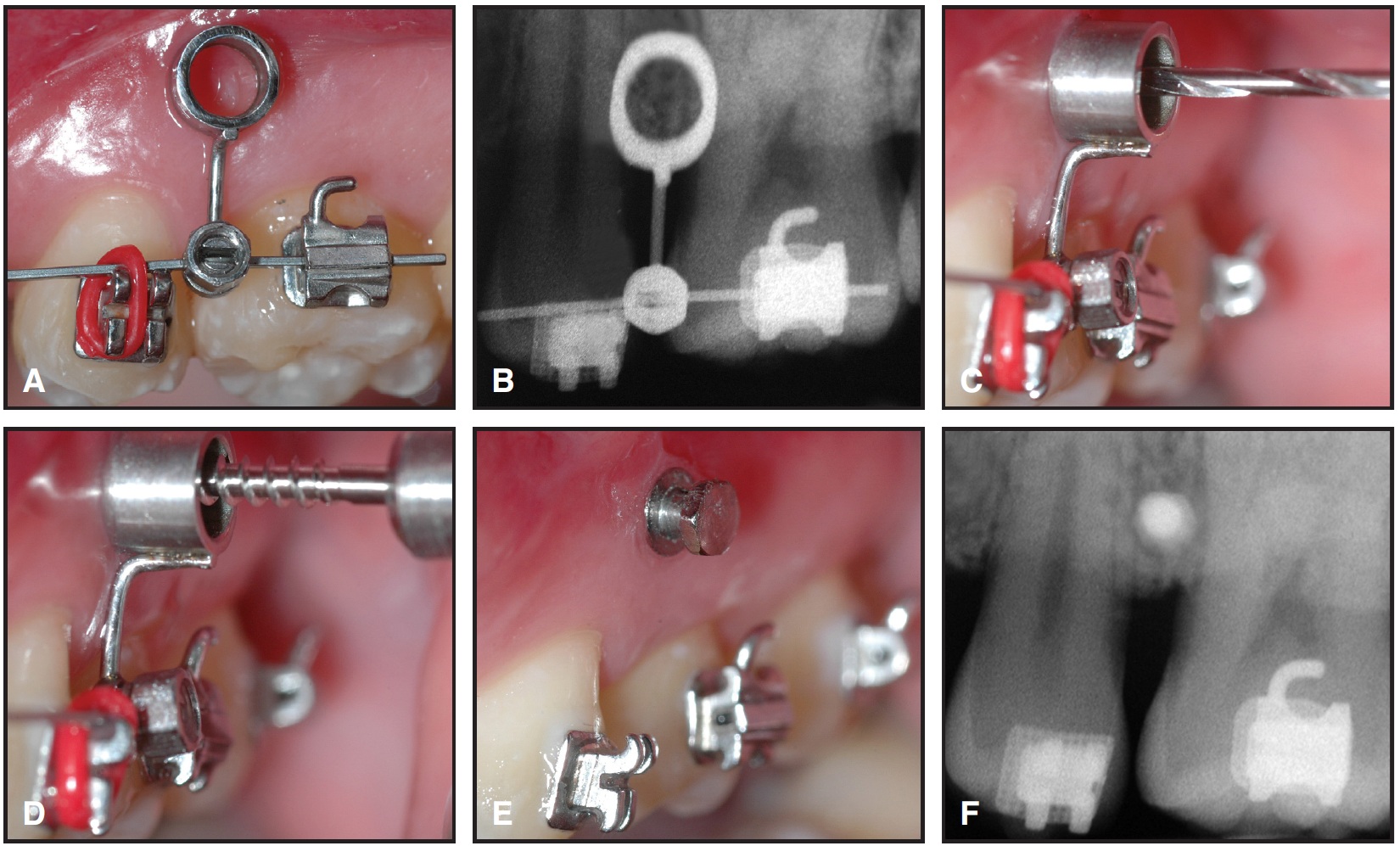

Fig. 7 A. 3D Guide in position. B. Bite-wing x-ray with image of radiopaque guide used to determine optimal miniscrew position relative to surrounding structures. C. Pilot hole drilled through guide tube. D. Miniscrew inserted through guide tube into pilot hole. E. Miniscrew in place after removal of guide. F. Final radiograph with miniscrew in place.

Discussion

A variety of techniques have been proposed to minimize the risk of root damage from interradicular miniscrews. A custom-made wire guide can be a practical radiopaque marker,¹⁰ but it provides only limited, two-dimensional information on the implant site.²² Furthermore, because it does not prevent deviation of the pilot drill, it does not eliminate the risk of root damage.²⁶ Surgical stents,^20,21,24,27 guides,^22,23,26 and templates^25,28-30 can transfer a radiographically planned, three-dimensional implant position to the surgical site more accurately, but fabrication of these guides is complicated and time-consuming, requiring laboratory equipment. Moreover, such devices do not allow the orthodontist to perform the fine clinical adjustments that may be needed to ensure precise miniscrew placement.

The 3D Guide described here solves many of these problems. It is easy to use, versatile, and fully adjustable for use in any position along the archwire of a labial or lingual appliance in either arch. Fine adjustments can be made to achieve an ideal miniscrew position in relation to the surrounding structures, alter the angle of miniscrew insertion, and maximize the surface contact between implant and bone. The guide can easily be removed from the archwire after miniscrew placement and reused on the opposite side, saving chairtime and expense. Patient discomfort is minimal.

In a previous retrospective study, we found that the accuracy of miniscrew placement with the 3D Guide was significantly greater than that achieved with a wire guide or no guide.²⁶ Regardless of the guide method used, however, radiographic assessment is critical. Vertical bite-wing x-rays taken with the long-cone technique can pinpoint the optimal miniscrew position in relation to surrounding structures, while a custom-made film holder ensures precise positioning of the film at the implant site and makes it possible to obtain a standardized series of radiographs throughout the insertion procedure.

ACKNOWLEDGMENTS: The authors are grateful to Dr. M. Kevin O'Carroll, Professor Emeritus of the University of Mississippi School of Dentistry and Faculty Consultant at Chiang Mai University Faculty of Dentistry, for his assistance in the preparation of the manuscript. We also thank Y&B Products for providing the 3D Surgical Guides.

FOOTNOTES

*Y&B Products, LP, Huay Keaw Soi 3, Amphur Muang, Chiang Mai 50200, Thailand; www.yb-products.com.
**Rinn XCP film holding system, Dentsply Rinn, 1212 Abbott Drive, Elgin, IL 60123; www.rinncorp.com.

REFERENCES

1. Kanomi, R.: Mini-implant for orthodontic anchorage, J. Clin. Orthod. 31:763-767, 1997.
2. Freudenthaler, J.W.; Haas, R.; and Bantleon, H.P.: Bicortical titanium screws for critical orthodontic anchorage in the mandible: A preliminary report on clinical applications, Clin. Oral Implants Res. 12:358-363, 2001.
3. Park, H.S.; Bae, S.M.; Kyung, H.M.; and Sung, J.H.: Micro-Implant Anchorage for treatment of skeletal Class I bialveolar protrusion, J. Clin. Orthod. 35:417-422, 2001.
4. Kyung, H.M.; Park, H.S.; Bae, S.M.; Sung, J.H.; and Kim, I.B.: Development of orthodontic micro-implants for intraoral anchorage, J. Clin. Orthod. 37:321-328, 2003.
5. Kyung, S.H.; Choi, J.H.; and Park, Y.C.: Miniscrew anchorage used to protract lower second molars into first molar extraction sites, J. Clin. Orthod. 37:575-579, 2003.
6. Lin, J.C. and Liou, E.J.: A new bone screw for orthodontic anchorage, J. Clin. Orthod. 37:676-681, 2003.
7. Park, H.S.; Bae, S.M.; Kyung, H.M.; and Sung, J.H.: Simultaneous incisor retraction and distal molar movement with microimplant anchorage, World J. Orthod. 5:164-171, 2004.
8. Park, H.S.; Kwon, O.W.; and Sung, J.H.: Microscrew implant anchorage sliding mechanics, World J. Orthod. 6:265-274, 2005.
9. Yun, S.W.; Lim, W.H.; and Chun, Y.S.: Molar control using indirect miniscrew anchorage, J. Clin. Orthod. 39:661-664, 2005.
10. Bae, S.M.; Park, H.S.; Kyung, H.M.; Kwon, O.W.; and Sung, J.H.: Clinical application of Micro-Implant Anchorage, J. Clin. Orthod. 36:298-302, 2002.
11. Jeon, Y.J.; Kim, Y.H.; Son, W.S.; and Hans, M.G.: Correction of a canted occlusal plane with miniscrews in a patient with facial asymmetry, Am. J. Orthod. 130:244-252, 2006.
12. Jeon, J.M.; Yu, H.S.; Baik, H.S.; and Lee, J.S.: En-masse distalization with miniscrew anchorage in Class II nonextraction treatment, J. Clin. Orthod. 40:472-476, 2006.
13. Carano, A.; Velo, S.; Leone, P.; and Siciliani, G.: Clinical applications of the Miniscrew Anchorage System, J. Clin. Orthod. 39:9-24, 2005.
14. Maino, B.G.; Bednar, J.; Pagin, P.; and Mura, P.: The Spider Screw for skeletal anchorage, J. Clin. Orthod. 37:90-97, 2003.
15. Maino, B.G.; Mura, P.; and Bednar, J.: Miniscrew implants: The Spider Screw anchorage system, Semin. Orthod. 11:40-46, 2005.
16. Poggio, P.M.; Incorvati, C.; Velo, S.; and Carano, A.: “Safe zones”: A guide for miniscrew positioning in the maxillary and mandibular arch, Angle Orthod. 76:191-197, 2006.
17. Deguchi, T.; Nasu, M.; Murakami, K.; Yabuuchi, T.; Kamioka, H.; and Takano-Yamamoto, T.: Quantitative evaluation of cortical bone thickness with computed tomographic scanning for orthodontic implants, Am. J. Orthod. 129:721, 2006.
18. Ishii, T.; Nojima, K.; Nishii, Y.; Takaki, T.; and Yamaguchi, H.: Evaluation of the implantation position of mini-screws for orthodontic treatment in the maxillary molar area by a micro CT, Bull. Tokyo Dent. Coll. 45:165-172, 2004.
19. Schnelle, M.A.; Beck, F.M.; Jaynes, R.M.; and Huja, S.S.: A radiographic evaluation of the availability of bone for placement of miniscrews, Angle Orthod. 74:832-837, 2004.
20. Kitai, N.; Yasuda, Y.; and Takada, K.: A stent fabricated on a selectively colored stereolithographic model for placement of orthodontic mini-implants, Int. J. Adult Orthod. Orthog. Surg. 17:264-266, 2002.
21. Morea, C.; Dominguez, G.C.; Wuo, A.V.; and Tortamano, A.: Surgical guide for optimal positioning of mini-implants, J. Clin. Orthod. 39:317-321, 2005.
22. Suzuki, E.Y. and Buranastidporn, B.: An adjustable surgical guide for miniscrew placement, J. Clin. Orthod. 39:588-590, 2005.
23. Estelita C.B., S.; Janson, G.; Chiqueto, K.; Freitas, M.R.; Henriques, J.F.C.; and Pinzan, A.: A three-dimensional radiographic-surgical guide for mini-implant placement, J. Clin. Orthod. 40:548-554, 2006.
24. Cousley, R.R. and Parberry, D.J.: Surgical stents for accurate miniscrew insertion, J. Clin. Orthod. 40:412-417, 2006.
25. Wu, J.C.; Huang, J.N.; Zhao, S.F.; Xu, X.J.; and Xie, Z.J.: Radiographic and surgical template for placement of orthodontic microimplants in interradicular areas: A technical note, Int. J. Oral Maxillofac. Implants 21:629-634, 2006.
26. Suzuki, E.Y. and Suzuki, B.: Accuracy of miniscrew implant placement with a 3-D surgical guide, Int. J. Oral Maxillofac. Implants [in review].
27. Cehreli, M.C.; Calis, A.C.; and Sahin, S.: A dual-purpose guide for optimum placement of dental implants, J. Prosth. Dent. 88:640-643, 2002.
28. Higginbottom, F.L. and Wilson, T.G. Jr.: Three-dimensional templates for placement of root-form dental implants: A technical note, Int. J. Oral Maxillofac. Implants 11:787-793, 1996.
29. Martin, W.; Heffernan, M.; and Ruskin, J.: Template fabrication for a midpalatal orthodontic implant: Technical note, Int. J. Oral Maxillofac. Implants 17:720-722, 2002.
30. Tosun, T.; Keles, A.; and Erverdi, N.: Method for the placement of palatal implants, Int. J. Oral Maxillofac. Implants 17:95-100, 2002.

DR. EDUARDO YUGO SUZUKI
DR. BOONSIVA SUZUKI

The authors are instructors, Department of Orthodontics, Faculty of Dentistry, Chiang Mai University, Suthep Road, Amphur Muang, Chiang Mai 50200, Thailand. They have a financial interest in Y&B Products. E-mail Dr. Boonsiva Suzuki at boonsiva@chiangmai.ac.th.
