Slow Maxillary Expansion with Nickel Titanium

Correction of a transverse discrepancy usually requires expansion of the palate by a combi­nation of orthopedic and orthodontic tooth movements. Initially, transverse forces will tip the buccal segments laterally.1 With proper appli­ance design, 3rd-order moments will induce bod­ily translation.2-5 If the force is strong enough, separation occurs at the maxillary suture. The amount of orthopedic vs. orthodontic change depends greatly on the patient's age. Normal palatal growth is nearly complete by age 6,6 and increasing interdigitation of the suture makes separation difficult to achieve after puberty.7-15

The rationale for sutural expansion, assum­ing the problem is diagnosed early enough, is twofold. First, a skeletal discrepancy should be treated by orthopedic correction whenever possi­ble. Second, dental compensation by buccal translation or tipping is undesirable, because the thin layer of bone covering the roots of the buc­cal segments is prone to penetration.

The objective of rapid palatal expansion is to reduce undesirable orthodontic tooth move­ment and tipping while producing enough force to overcome the tendency of the anchor teeth to move, thereby maximizing the orthopedic response by causing separation at the suture.16-18 RPE appliances require frequent activations and generate heavy forces--as much as 2-5kg per quarter-turn, with accumulated loads of more than 9kg.19

Although sutural separation is relatively easy to obtain with RPE, implant data indicate that sutural expansion accounts for only about 50% of the overall expansion. In more than 30% of Krebs's sample of 23 patients, sutural expan­sion was less than one-third of the total expan­sion.20

Buccal tipping, even of the amount pro­duced by RPE, is highly unstable and prone to relapse quickly.21 According to Haas, fixed retention after RPE can virtually eliminate sutural relapse.22 However, using the same split-palate-­expanding appliance, Krebs found that the dis­tance between implants in the hard palate and infrazygomatic ridge decreased during retention by 10-15%.23 This relapse was found to occur as late as four or five years after fixed retention.

Rationale for Slow Maxillary Expansion

Increases in arch width obtained through slow palatal expansion procedures are generally thought to result in an orthodontic response with little, if any, orthopedic component. By contrast with RPE, only 450-900g of force is generated, which may be insufficient to separate a progres­sively maturing suture.5,6,14,15,17,24,25

In animal studies, however, slow expansion procedures have demonstrated orthopedic effects comparable to those of RPE.2,18,26 Histologic ex­amination suggests that sutural separation does occur, but at a rate that maintains the integrity of the maxillary sutures by allowing for bone remodeling.5,9,10,18,26,27 Clinical studies of human patients in the deciduous or early mixed denti­tion24,28,29 substantiate these findings: maxillary archwidth increases ranged from 3.8mm to 8.7mm with slow expansion of as much as 1mm per week, using 900g of force.15

Zimring and Isaacson suggest that "the optimum rate of activation would be one where­by additional loads are added at close to the same rate that the facial skeleton can respond by phys­iological movement".30 Storey recommends slow expansion at .5-1mm per week to allow for "physiological sutural adjustments", which elicit less trauma and a greater repair response com­pared to rapid expansion.31 Ekstrom reports that slowly expanded sutures become well organized in 30 days and are well established with mineral­ized tissue by three months.27

Slow expansion has been found to promote greater postexpansion stability, given an ade­quate retention period.2,5,10,15,18,23,24,27-29 Further­more, in a comparison of slow expansion (with a Quad Helix*) and RPE, Zachrisson concluded that periodontal breakdown on the buccal aspects of posterior teeth occurred infrequently in both groups, but that the few patients who exhibited some attachment loss were mostly in the RPE group.32

In addition to these biological benefits, slow expansion techniques offer a number of clinical advantages. An ideal slow expansion appliance requires minimal adjustment through­out its use, but permits easy adjustment when necessary. It delivers a constant physiologic force until the required expansion is obtained. The appliance is light and comfortable enough to be kept in place for sufficient retention of the expansion. Prefabrication eliminates extra ap­pointments for impressions and the time and expense of laboratory fabrication.

The present article describes such an expansion appliance.

Nickel Titanium Palatal Expander

The nickel titanium expander** generates optimal, constant expansion forces (Fig. 1). Its central component is fabricated from a thermally activated nickel titanium alloy. The rest of the appliance, including the anterior arms, is made of stainless steel. The expander may be used simul­taneously with conventional fixed appliances, requiring only the addition of lingual sheaths on the molar bands.

The nickel titanium component has a tran­sition temperature of 94°F. At room temperature, the expander is too stiff to bend for insertion. Chilling the expander softens the central compo­nent, allowing easy manipulation. Once placed, the expander warms to body temperature, stiff­ens, and begins to return to its original shape. A 3mm increment of expansion exerts only about 350g of force,33 and the nickel titanium alloy pro­vides relatively uniform force levels as the expander deactivates.

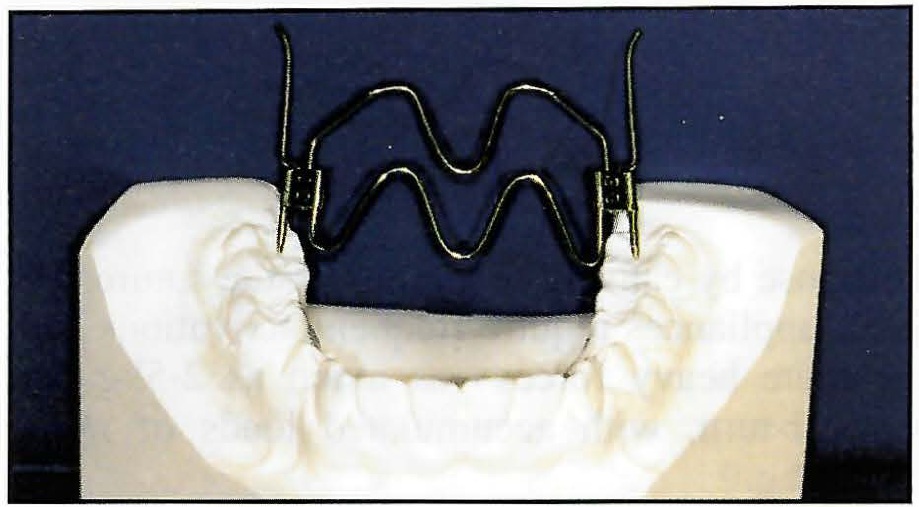

Fig. 1 Nickel titanium expander: central component formed from thermally activated nickel titanium alloy; anterior arms made of stainless steel.

The expander is available in sizes from 26mm to 44mm. In most cases, the simplest way to determine the appropriate size is to measure the mandibular intermolar width at the central fossae (Fig. 2). Since the mesiolingual cusps of the maxillary molars should occlude in these fos­sae, expansion to the mandibular intermolar width will provide optimal occlusion (Fig. 3).

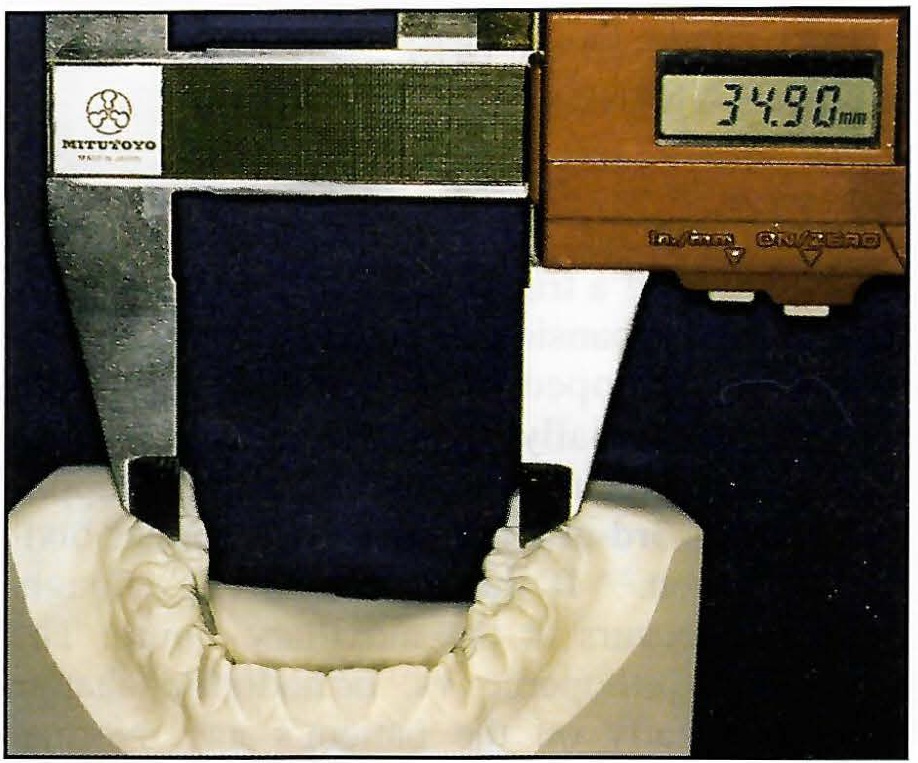

Fig. 2 Mandibular intermolar width measured between central fossae.

If the mandibular molars are lingually inclined as a dental compensation for a skeletal posterior crossbite, as often occurs, it is appropriate to add another 1-2mm to the expansion requirement. In any case, 2-3mm should be added for overex­pansion (Fig. 4). If more than 8mm of expansion is needed, two expanders must be used in suc­cession.

Clinical Technique

1. Select the appropriate size expander, based on measurement of the study casts.

2. Adjust the anterior arms of the expander as needed.

3. Wrap the central component with moist gauze (Fig. 5), and place the expander in the freezer.

4. Determine the appropriate band sizes, and fit bands (with lingual sheaths) as usual (Fig. 6).

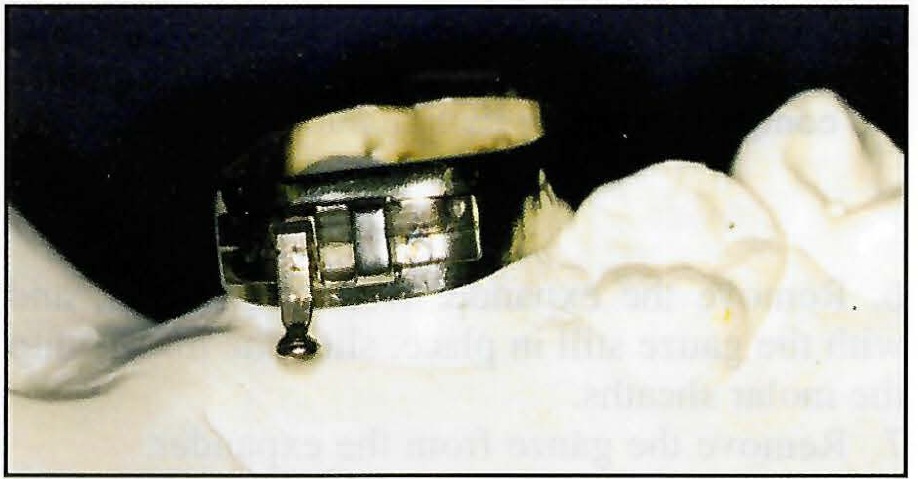

Fig. 6 Molar bands equipped with lingual sheaths for insertion of expander.

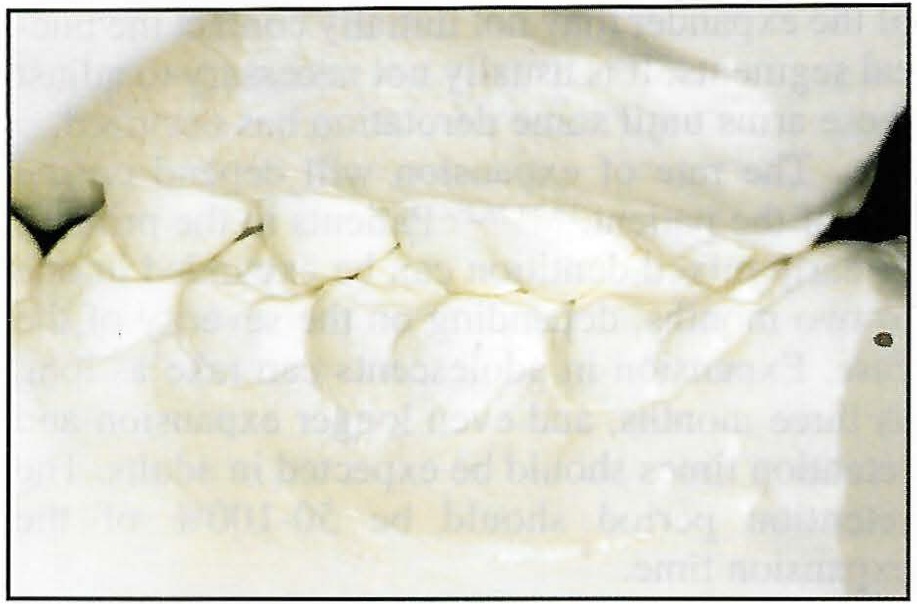

Fig. 3 In normal occlusion, mesiolingual cusp of maxillary first molar seats into central fossa of mandibular first molar, while distolingual cusp contacts mesial marginal ridge of mandibular second molar.

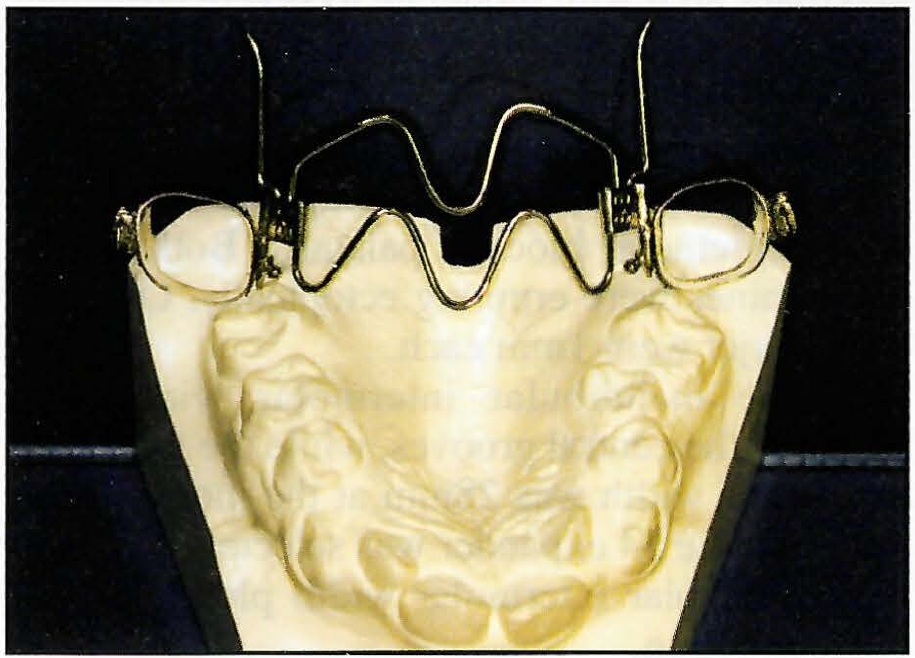

Fig. 4 Size 38 expander selected for mandibular intermolar width of 35mm, plus 3mm for overexpansion.

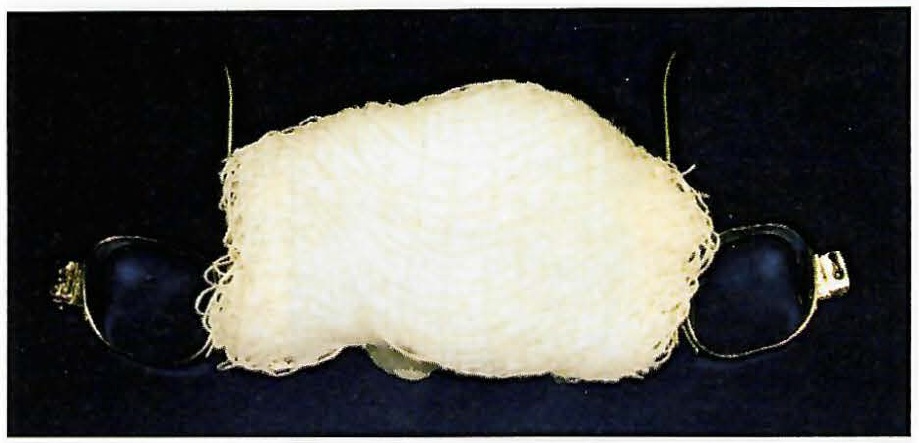

Fig. 5 Moist gauze insulates expander from oral temperature, allowing more working time before expander returns to original shape.

5. Cement the bands with a dual- or light-cured cement.

6. Remove the expander from the freezer, and with the gauze still in place, slide the inserts into the molar sheaths.

7. Remove the gauze from the expander.

An alternative method involves assembly of the expander and bands extraorally, and cementation as one unit. This procedure is preferable where access to the palate is restricted and insertion may be difficult. The drawback of this method is that it requires rapid band place­ment and cementation as the expander warms to oral temperature.

Many options are available for cooling the expander prior to insertion (Fig. 7). The expander may be put in a freezer or cooled with gel freeze packs until ready for placement. Alternatively, a refrigerant spray such as ethyl chloride or tetrafluoroethane can be used imme­diately prior to insertion to chill the expander, which is then wrapped in gauze and placed in the mouth. The moist gauze insulates the cooled expander from body temperature, thereby increasing the working time.

If the molars are rotated, the anterior arms of the expander may not initially contact the buc­cal segments. It is usually not necessary to adjust these arms until some derotation has occurred.

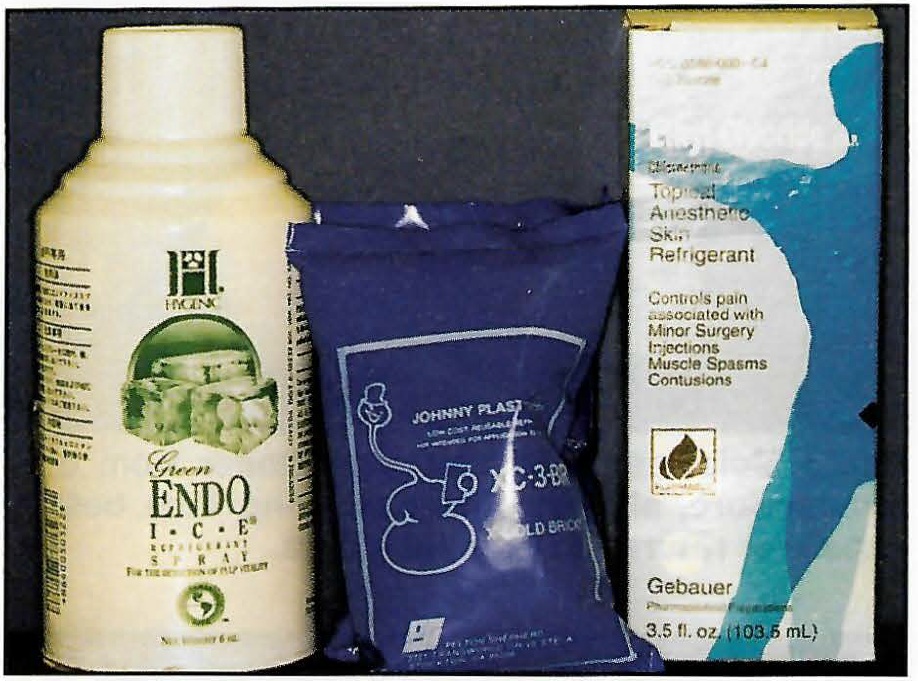

Fig. 7 Various methods used to cool nickel titanium component below its transition temperature.

The rate of expansion will depend on the age of the patient.15,24,28,29 Patients in the primary or early mixed dentition can be expanded in one to two months, depending on the severity of the case. Expansion in adolescents can take as long as three months, and even longer expansion and retention times should be expected in adults. The retention period should be 50-100% of the expansion time.

Case 1

A prepubertal female, 10 1/2 years of age, presented with a constricted, sigmoid-shape maxillary arch with moderate to severe crowding (Fig. 8). Both maxillary molars were rotated mesial-in, the right molar more severely. The resultant loss of arch length created an asymmet­rical Class II molar relationship with the right second premolar blocked palatally. Both maxil­lary canines were erupting ectopically. Overbite and overjet were 1mm each.

Fig. 8 Case 1. Prepubertal 101/2-year-old female with significant unilateral posterior crossbite and overrotation of maxillary right first molar before treatment.

The mandibular intermolar width was 31mm at the central grooves, while the maxillary intermolar width was 28mm at the mesiolingual cusps. A size 34 expander was selected, based on the mandibular intermolar width plus 3mm for overcorrection.

A chin cup was prescribed for the first month to control the vertical dimension during expansion.1 After one month, 3mm of transverse correction had been achieved (Fig. 9).

Fig. 9 Case 1. After one month of expansion, molar relationship corrected with minimal tipping.

The expander was left in place for three more months of overcorrection and retention, while alignment and leveling of the dentition were carried out (Fig. 10).

Fig. 10 Case 1. Dental alignment during overexpansion and retention. Expander was removed after four months.

The arches were then leveled with rec­tangular wires. Treatment was completed shortly thereafter with minor finishing (Fig. 11).

Fig. 11 Case 1. After treatment.

Case 2

An 11-year-old postpubertal female presented with a slightly crowded dentition and a Class I occlusion (Fig. 12). The left posterior segment was in crossbite. The overjet and over­bite were 2mm each.

Fig. 12 Case 2. 11-year-old female in late mixed dentition with unilateral posterior crossbite before treatment.

The mandibular intermolar width measured 36mm; the maxillary molars spanned 33mm. A size 38 expander was selected. After four weeks, the transverse discrepancy had been corrected (Fig. 13).

Fig. 13 Case 2. Transverse correction after one month of expansion, with minimal tipping.

In four more weeks, the desired over-expansion was complete (Fig. 14).

Fig. 14 Case 2. Overcorrection after two months of expansion.

The expander was left in place for another two months for retention (Fig. 15).

Fig. 15 Case 2. Expander removed after two months of retention, with minor dental alignment and finishing remaining to be performed.

Treatment of the remaining dentition was delayed until the primary mandibular second molars were mobile and the maxillary canines had begun to erupt. At that time, brackets were placed for simple alignment and finishing.

Case 3

A 13-year-old male presented with a Class I molar occlusion, bilateral impacted maxillary canines, and a mild posterior transverse discrep­ancy (Fig. 16). Only minimal expansion was needed in this case; it was more important to establish proper 3rd-order inclination of the molars and to obtain sufficient posterior anchor­age to extrude the impacted maxillary canines.

Fig. 16 Case 3. 13-year-old male with impacted maxillary canines and mild posterior transverse discrepancy before treatment.

A Nitanium Palatal Expander 2*** was used to allow 1st- and 3rd-order adjustments to be made as necessary (Fig. 17). The central nick­el titanium component of this expander is attached to .036" stainless steel loops, which may be adjusted in any dimension or orienta­tion.34

Fig. 17 Case 3. Exposure of palatally impacted canines delayed until desired expansion was achieved; note minimal tipping of molars.

Proper buccal overjet was obtained and held for two months. The anterior steel arms were then cut off to allow the surgeon to have clear access for the canine exposure. The expander was maintained for anchorage while the canines were erupted with III Titanium (CNA) cantilever springs*** (Fig. 18).

Fig. 18 Case 3. Expander left in place for retention and molar stabilization during eruption of palatally impacted canines with cantilever springs.

Discussion

Occlusal x-rays will seldom show palatal separation during slow expansion procedures. The gradual rate of expansion maintains tissue integrity and elicits a physiologic response that allows bone deposition along the suture to keep pace.5,9,10,18,26,27 Consequently, an unsightly mid­line gap can be avoided, and the arch length gained can be used to align ectopic canines and premolars, as shown in Cases 1 and 3.

Orthodontic tooth movement and buccal tipping occur initially, but are kept to a mini­mum. Third-order moments generated by the expander soon upright the molars and provide stable, orthopedic maxillary expansion.15,18,27,28

As in any expansion procedure, overexpan­sion is necessary to compensate for the tendency of the posterior teeth to return to their pretreat­ment axial inclinations.5,10,15 The best bench­mark, therefore, is the 3rd-order inclination of the posterior teeth. Once the transverse discrep­ancy has been corrected, the expander should be kept in place long enough to correct any buccal tipping that occurred earlier in the expansion process. The mandibular buccal segment will gradually upright itself, eliminating dental com­pensations from the preexisting crossbite.

In patients with excessive lower facial height, vertical control is essential. A chin cup, used for a short period of time, is an excellent way to control bite opening during expansion.1 High-pull headgear may be used for a longer period to control the vertical eruption of the max­illary molars while correcting a Class II molar relationship.

Conclusion

The nickel titanium expander provides a viable alternative to rapid expansion for correc­tion of transverse discrepancies. Incorporation into an existing fixed appliance eliminates a sep­arate laboratory phase and extra appointments for delivery, impressions, adjustments, and rebanding of the molars after removal. The buc­cal molar attachments are free for use with intru­sion arches, utility arches, wire segments, extra­oral appliances, or comprehensive fixed appli­ances. The expander is not cumbersome or uncomfortable and thus can be kept in place for retention and anchorage, even while other proce­dures are being performed.34

FOOTNOTES

  • *RMO, Inc., P.O. Box 17085, Denver, CO 80217.
  • **GAC International, Inc., 185 Oval Drive, Central Islip, NY 11722.
  • ***Ortho Organizers, Inc., 1619 S. Rancho Santa Fe Road, San Marcos, CA 92069.

REFERENCES

  • 1.   Majourau, A. and Nanda, R.: Biomechanical basis of vertical dimension control during rapid palatal expansion therapy, Am. J. Orthod. 106:322-328, 1994.
  • 2.   Cleall, J.F.; Bayne, D.I.; Posen, J.M.; and Subtelny, J.D.: Expansion of the mid-palatal suture in the monkey, Angle Orthod. 35:23-35, 1965.
  • 3.   Starnebach, H.K. et al.: Facioskeletal and dental changes resulting from rapid maxillary expansion, Angle Orthod. 36:152, 1966.
  • 4.   Murray, J.M. and Cleall, J.F.: Early tissue response to rapid maxillary expansion in the midpalatal suture of the rhesus monkey, J. Dent. Res. 50:1654, 1971.
  • 5.   Storey, E.: Tissue response to the movement of bones, Am. J. Orthod. 64:229-247, 1973.
  • 6.   Moyers, R.E.; van der Linden, F.P.G.M.; and Riolo, M.L.: Standards of Human Occlusal Development, Monograph 5, Craniofacial Growth Series, Center for Human Growth and Development, University of Michigan, Ann Arbor, 1976.
  • 7.   Persson, M. and Thilander, B.: Palatal suture closure in man from 15 to 35 years of age, Am. J. Orthod. 72:42-52, 1977.
  • 8.   Handelman, C.S.: Nonsurgical rapid maxillary alveolar expansion in adults: A clinical evaluation, Angle Orthod. 67:291-305, 1997.
  • 9.   Storey, E.: Bone changes associated with tooth movement: A histological study of the effect of force in the rabbit, guinea pig, and rat, Austral. Dent. J. 59:147, 1955.
  • 10.   Isaacson, R.J. and Ingram, A.H.: Forces produced by rapid maxillary expansion, II. Forces present during treatment, Angle Orthod. 34:261-270, 1964.
  • 11.   Brossman, R.E. et al.: Facioskeletal remodeling resulting from rapid palatal expansion in the monkey, Arch. Oral Biol. 18:987, 1973.
  • 12.   Melsen, B.A.: A histological study of the influence of sutural morphology and skeletal maturation on rapid palatal expansion in children, Trans. Eur. Orthod. Soc., p. 499, 1972.
  • 13.   Starnebach, J.K. and Cleall, J.F.: Effects of splitting the midpalatal suture on the surrounding structures, Am. J. Orthod. 50:923, 1963.
  • 14.   Haas, A.J.: The treatment of maxillary deficiency by opening the mid-palatal suture, Angle Orthod. 35:200-217, 1965.
  • 15.   Hicks, E.P.: Slow maxillary expansion: A clinical study of the skeletal versus dental response to low-magnitude force, Am. J. Orthod. 73:121-141, 1978.
  • 16.   Wertz, R.A.: Skeletal and dental changes accompanying rapid midpalatal suture opening, Am. J. Orthod. 58:41-65, 1970.
  • 17.   Haas, A.J.: Rapid expansion of the maxillary dental arch and nasal cavity by opening of the midpalatal suture, Angle Orthod. 31:73-90, 1961.
  • 18.   Cotton, L.A.: Slow maxillary expansion: Skeletal versus dental response to low magnitude force in Macaca mulatta, Am. J. Orthod. 73:1-23, 1978.
  • 19.   Isaacson, R.J.; Wood, J.L.; and Ingram, A.H.: Forces produced by rapid maxillary expansion, Angle Orthod. 34:256-270, 1964.
  • 20.   Krebs, A.A.: Expansion of the midpalatal suture studied by means of metallic implants, Trans. Eur. Orthod. Soc. 34:163-171, 1958.
  • 21.   Haas, A.J.: Palatal expansion: Just the beginning of dentofacial orthopedics, Am. J. Orthod. 57:219-255, 1970.
  • 22.   Haas, A.J.: Long-term post-treatment evaluation of rapid palatal expansion, Angle Orthod. 50:189, 1980.
  • 23.   Krebs, A.A.: Midpalatal suture expansion studied by the implant method over a seven-year period, Trans. Eur. Orthod. Soc. 40:131-142, 1964.
  • 24.   Bell, R.A. and LeCompte, E.J.: The effects of maxillary expansion using a quad-helix appliance during the deciduous and mixed dentitions, Am. J. Orthod. 79:152-161, 1981.
  • 25.   Chaconas, S.J. and de Albay Levy, J.A.: Orthopedic and orthodontic applications of the quad-helix appliance, Am. J. Orthod. 72:422, 1977.
  • 26.   Ohshima, O.: Effect of lateral expansion force on the maxillary suture in cynomolgus monkey, J. Osaka Dent. Univ. 6:11-50, 1972.
  • 27.   Ekstrom, C. et al.: Mineralization in the midpalatal suture after orthodontic expansion, Am. J. Orthod. 71:449-455, 1977.
  • 28.   Skieller, V.: Expansion of the midpalatal suture by removable plates, analyzed by the implant method, Trans. Eur. Orthod. Soc., p. 143, 1964.
  • 29.   Harberson, V.A. and Myers, D.R.: Midpalatal suture opening during functional posterior cross-bite correction, Am. J. Orthod. 74:310-313, 1978.
  • 30.   Zimring, J.E. and Isaacson, R.J.: Forces produced by rapid maxillary expansion, III. Forces present during retention, Angle Orthod. 34:178-186, 1965.
  • 31.   Barber, A.F. and Sims, M.R.: Rapid maxillary expansion and external root resorption in man: A scanning electron microscope study, Am. J. Orthod. 79:630-652, 1981.
  • 32.   Greenbaum, K.R. and Zachrisson, B.U.: The effect of palatal expansion therapy on the periodontal supporting tissues, Am. J. Orthod. 81:12-21, 1982.
  • 33.   Arndt, W.V.: Nickel titanium palatal expander, J. Clin. Orthod. 27:129-137, 1993.
  • 34.   Corbett, M.C.: Slow and continuous maxillary expansion, molar rotation, and molar distalization, J. Clin. Orthod. 31:253-263, 1997.
  • ROBERT
    DR. MARZBAN
  • RAVINDRA
    DR. NANDA

Dr. Marzban is a third-year resident and Dr. Nanda is Professor, Chairman, and Program Director, Department of Orthodontics, School of Dentistry, University of Connecticut Health Center, 263 Farmington Ave., Farmington, CT 06030.
